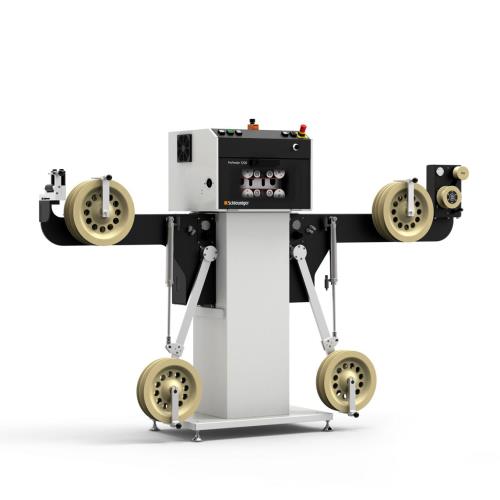

PreFeeder 3200
Powerful cable pulling system for cables up to 35 mm (1.38“)
Overview
The belt driven puller feeder type can pull wires and cables from a spool. The system is available with different accumulator systems:
- Pendulum arm accumulator for high dynamic feeding
- Loop limit control for rigid cables
- Inlet pendulum arm for smoothly acceleration of the spool
Customer Benefits
- Adaptable for various applications and cable types
- Easy handling and high feeding dynamics for efficient production
- Integrated circuits for safety operation
Application Range
- Prefeeding by pulling directly from a spool
- Flexible and / or rigid wires and tubes up to 35 mm (1.38“)
Technical Specifications
| |
Raw Material Diameter | 35 mm (1.38”) |
Pulling Force | 330 N (73 lbf) |
Feed Rate | 0 – 2.5 m/s (0 – 8.2 ft./s) |
Power Supply | 100/115 VAC, 60 Hz, 230/240 VAC, 50 Hz, 850 Watt |
Compressed Air Connection | 6 bar (90 psi) |
Accumulator Storage Capacity | 1,800 mm (70.8“) with 2 loops or 900 mm (35.4”) with 1 loop, depending on cable stiffness |
Weight | 150 kg (330 lbs.) Base machine
20 kg (44 lbs.) Inlet Accumulator
20 kg (44 Ibs.) Accumulator speed control 1
10 kg (22 lbs) Loop Limit Control |
Dimensions (L x W x H) | 710 x 560 x 1,400 mm (28 x 22 x 55”) Base machine
1,400 x 560 x 1,400 mm (55 x 22 x 55”) with Accumulator Speed Control Arm
2,090 x 600 x 1,400 mm (82 x 24 x 55”) with Inlet Accumulator & Accumulator Speed Control
410 x 310 x 1,040 mm (16 x 12 x 41”) Loop Limit Control |
CE-Conformity | The PreFeeder 3200 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility |
Important Note | Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine. |
