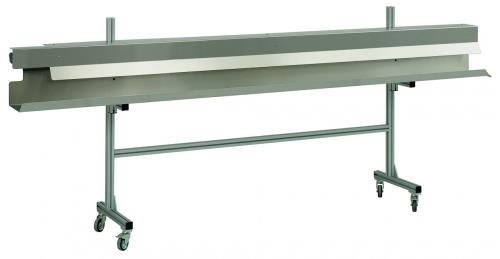

WireStacker 1000
Passive wire stacking system with guide channel and collecting tray. It handles cable lengths up to 3 m (10 ft) and wires as small as 0.34 mm² (22 AWG).
Overview
The WireStacker 1000 is a passive wire stacking system with guide channel and collecting tray. It handles cable lengths up to 3 m (10 ft) and wires as small as 0.34 mm² (22 AWG).
Application Range
The WireStacker 1000 is a passive wire stacking system, which guides and collects wires that have been processed with Schleuniger Cut & Strip machines.
More Information
Function
The wire is fed through the ejector pipe of the wire stacker by the machine’s transport rollers. After processing each wire, the machine sends a control signal to the wire stacker making it drop the wire from the collection tube into the collection tray. The WireStacker 1000 can handle wires as small as 0.34 mm² (22 AWG).
Features
- Low cost solution allowing unattended operation
- WireStacker 1000 stacks wire up to a length of 3.0 m (10 ft.)
- Greatly reduces labor involved in handling long wires
- Passive design built for almost unlimited and trouble free cycles
- Feed through design for handling lengths longer than 3.0 m (10 ft.)
- Uses dedicated wire stacker interface on the EcoStrip 9380, MultiStrip 9480, PowerStrip 9550 and MegaStrip 9650
- Extruded aluminium frame and all stainless steel construction
- Works equally well with short or long wires
Technical Specifications
| |
Raw Material Diameter | Maximum 25.4 mm (1”) outer diameter |
Workpiece Length | Up to 3,000 mm (120”), longer lengths possible but cable depending |
Wire Axis Height | Adjustable: 610 mm (24”) up to 1,060 mm (42”) |
Compressed Air Connection | 5-6 bar (75 – 90 psi) (WireStacker 1000 includes air pressure regulator / gauge)
<0.03 m3 / min. at 550 kPa (<1 CFM at 80 PSI) |
Dimensions (L x W x H) | 3,000 x 470 x 1,170 mm (120 x 18.5 x 46”) |
Weight | 55 kg (117 Ibs.) |
CE-Conformity | The WireStacker 1000 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
