WireStacker 3150

High-performance wire stacker for the precise, axial stacking of cables.

Overview

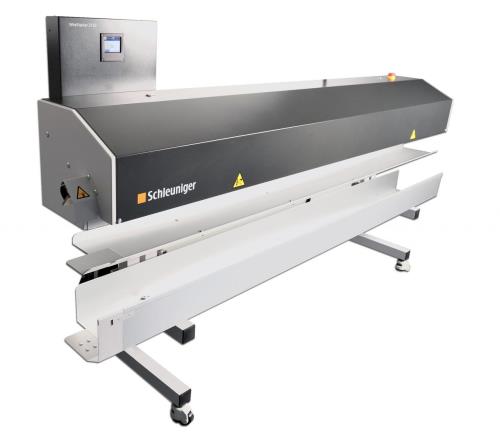

The WireStacker 3150 is a high-performance wire stacker for the precise, axial stacking of cables. The system is available with 2.5 m (8.20 ft), 5 m (16.4 ft), 7.5 m (24.6 ft), or 10 m (32.8 ft) in length. Built in, synchronized driven transport belts allow stacking cables carefully and safely without wire jam even for very flabby wires.

Application Range

The WireStacker 3150 is a high-performance wire stacker for the precise, axial stacking of cables. The system is available with 2.5 m (8.20 ft), 5 m (16.4 ft) 7.5 m (24.6 ft) or 10 m (32.8 ft) in length. Built in, synchronized driven transport belts allow stacking cables carefully and safely without wire jam, even for very flabby wires. The integrated batch tray allows an independent working of the operator so he can take additional operations simultaneously to the production process. The WireStacker 3150 excels with exceptional performance and flexibility making it an important element within an efficient and precise cable processing line.

More Information

Function

The WireStacker 3150 is controlled by I/O-signals and speed information of an up-stream cable processing machine. Apart from transporting the wire, the 45° tilted transport belt also assures for an optimal guiding and a secured ejection of the wire.

Features

Easily interface with the upstream processing machine configurable stacking process with clearly laid out color touchscreen
High-speed stacking and unloading synchronized with the upstream wire processing machine
Separate controllable, tilting batch tray for production in batch-mode
No process interruption while unloading the wires
Freely programmable batch processing
Service friendly access to electronic and mechanic components

Technical Specifications


Raw Material Diameter	1.5 – 25.4 mm (0.06 – 1”)
Workpiece Length	2.5 m (8.2 ft/s), 5 m (16.4 ft/s), 7.5 m (24.6 ft/s), 10 m (32.8 ft/s)
Feeding Speed	Up to 4 m/s (13.1 ft/s) Synchronized with the upstream cable processing machine
Interfaces	PPI standard (I/O signals and speed information), Emergency Stop
Power Supply	110 / 115 / 230 / 240 VAC, 50 / 60 Hz
Compressed Air Connection	6 bar (90 psi)
Weight	120 kg (264.6 lbs.) for version 2.5 m (8.2 ft)
Dimensions (L x W x H)	2.5 m (8.2 ft) version: 2,805 x 610 x 1,500 mm (110.43 x 24.01 x 59.05")
CE-Conformity	The WireStacker 3150 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Important Note	Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
