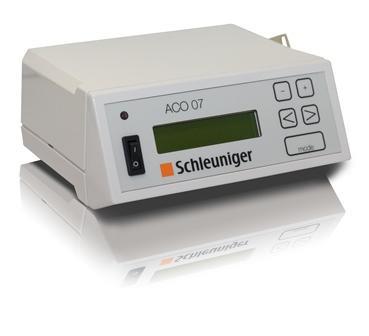

Crimp force monitoring device. The ACO 07 replaces the ACO 05.

Overview

Electronic crimp force monitoring system for semi-automatic crimping machines.

  • High process reliability with 100% inspection.
  • Network capability for efficient data collection and control.
  • Officially approved by leading car manufacturers.

Application Range

The ACO 07 is for use on Schleuniger semi-automatic, bench top, electric crimping machines. Multiple ACO units can be linked in a network with other Schleuniger quality devices, either via RS 232 or TCP/IP, to create a very cost effective monitoring system.

Material

  • Metal Crimp Contacts

Technical Specifications

Measuring Range

0 – 15 kN (optional up to 100 kN)

LCD Display

Single channel: 2 x 16 characters

Language

German, English, French, Italian, Spanish, Portuguese, Czech, Polish

Interfaces

VGA (640 x 480) optional: Digimatic (CHM), RS 232 (PT)

Triggering

Calculated internal triggering or external triggering

Crimp Reference

1 – 20 (programmable)

Baud Rate

Up to 115200

Line Voltage

12 – 24 VDC (± 10%) External power supply, 110 V – 220 V

Power Consumption

Max. 10 W

Analysis

Software for multi-channel monitoring with optional statistical analysis

Network Compatibility

Via RS 232 or Ethernet (TCP/IP) via WinCrimp LAN or WLAN

Dimensions (L x W x H)

150 x 150 x 70 mm (5.9 x 5.9 x 2.8“)

Weight

ca. 400g (0.9 lbs.)

Safety Class

IP 20

CE-Conformity

The ACO 07 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
