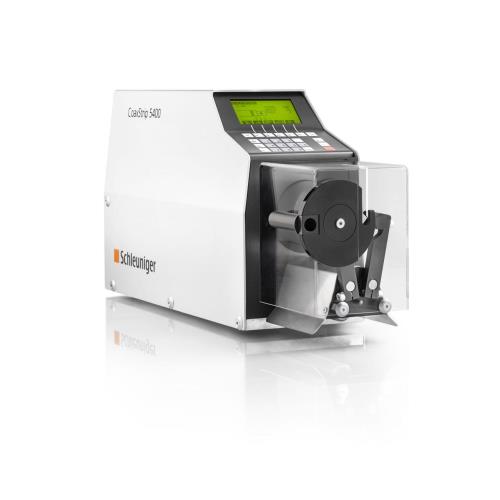

CoaxStrip 5400
Programmable multi-step stripping machine for coaxial, triaxial and multi-conductor cable as well as single conductor wire up to 11 mm.

Overview

The CoaxStrip 5400 is a semi-automatic, programmable stripping machine designed to perform both single and multiple stage strips. Production proven mechanics, combined with state-of-the-art electronics, a user-friendly display and included PC software create an easy to use platform, which offers maximum efficiency. The machine can easily process coaxial and triaxial cables with a maximum outer diameter of 11 mm (0.44'') at a maximum stripping length of 40 mm (1.58"). Its processing capabilities make the CoaxStrip 5400 a perfect match for a wide range of wires and cables, such as single conductor wire and all common coaxial cables on the market, including the larger RG8, RG11 and RG213 types.

Application Range

Production proven mechanics, combined with state-of-theart electronics and a user-friendly display create an easy to use platform, which offers maximum efficiency. The CoaxStrip 5400 can easily process coaxial and triaxial cables with a maximum outside diameter of 11 mm (0.43“). Short cycle times and the ability to store up to 1,000 programs in memory ensure high profitability and quick return on investment.

Material

  • Cable
  • Coaxial Cable
  • Discrete Wire
  • Kapton
  • Multi-conductor Cable
  • Paper / Cardbord
  • PUR
  • PVC
  • Rubber
  • Single Conductor Cable
  • Solid Wire
  • Stranded Wire
  • Teflon®
  • Tefzel®
  • Triaxial Cable
  • Wire

Processing Capabilities

  • Coaxial cable processing
  • Conformable cable processing
  • Discrete wire processing
  • Full strip
  • Multi-conductor cable processing
  • Multi-layer stripping
  • Multi-step stripping
  • Partial strip
  • Triaxial cable processing

More Information

Programmable Processing Parameters

  • Pull-off with or without rotation of the stripping head
  • Pull-off speed
  • Stripping lengths partial strip
  • Stripping lengths full strip
  • Extra spin time of the stripping head
  • Spindle direction of the stripping head
  • Rotational speed of the stripping head
  • Stripping diameter
  • Stripping Position
  • Wayback (opens blades slightly before pulling off)
  • Feed rate of the stripping blades
  • Cable clamping force

Features

  • Wire list processing
  • Graphical PC-Software
  • Various Interfaces
  • Diagnostics features
  • Various user levels

User-Friendly

The CoaxStrip 5400 menu driven programming allows for easy and quick data input. The cable end to be stripped, along with the most important parameters are shown on the high resolution graphic display. The unique stripping head design combines universal stripping blades with a universal centering system. This allows the CoaxStrip 5400 to process the entire range of cable types and diameters within its specifications with no tooling changeovers whatsoever. Once the values are stored for a particular cable with its required stripping parameters, the program can be retrieved in seconds. Other user-friendly features are; easy insertion of the cable, cycle start by means of an automatic sensor and the ability to clearly view the entire operation through the safety shield.

Technical Specifications

Raw Material Diameter

Maximum 11 mm (0.43“)

Diameter Increments

0.01 mm (0.001“)

Strip Length

Maximum 40 mm (1.58“)

Strip Length Increment

0.01 mm (0.001“)

Stripping Steps

Maximum 9

Clamping

Motor, clamping force programmable

Cycle Time

> 4 s (depending on cable type and programming)

Production Rate

300 - 600 pcs. / hr. (depending on cable type and programming)

Memory Capacity

1,000 cables / 100 wire lists

Interfaces

R 232, foot pedal, robotic interface (option)

Noise Level

<70 dB (A)

Power Supply

110 / 115 VAC: fuse 2.0 A/T, 230 / 240 VAC: fuse 1.0 A/T, 50/60 Hz, 150 VA

Dimensions (L x W x H)

480 x 140 x 235 mm (18.9 x 5.5 x 9.3”)

Weight

12 kg (26.7 lbs.)

CE-Conformity

The CoaxStrip 5400 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
