EcoStrip 9300

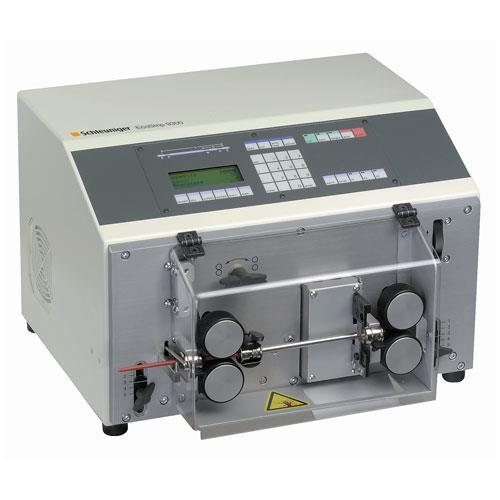

Automatic Cut & Strip Machine The EcoStrip 9300 is an economic efficient automatic cut & strip machine. Wide application range, high productivity, simple operation and the well-known Schleuniger stripping quality are the main features of this machine. The EcoStrip 9300 also proves that good technology does not have to be expensive. The EcoStrip 9300 may be combined with Schleuniger system components for the construction of a complete production line.

Functions

es9300-01
  • Cutting to length
  • Full or partial strip
  • Window strip
  • Processing of flat ribbon cable
  • Multiple wire processing for higher throughput

Customer Benefits

  • Quick programming (complete wire library with default values in mm2 and AWG)
  • Simple operation as of LED-programming guide and display
  • Quick change guide
  • Integrated wire jam detector and out-of-wire sensor
  • Special cable processing (e.g. flat ribbon cable)

Options

  • Special guides and cutting blades allow simultaneous processing of two or four wires
  • Short mode belt type unit, for processing of very short wires
  • Set of special guides enables processing of flat ribbon cables

Technical specifications

Attribute Value
Applications

Wires, cables: Max. outside diameter: 6 mm [0.235“] (max. guide tube size 7 mm [0.276”]

Flat ribbon cable: Max. width: 9 mm / 13 mm [0.354”/0.511”], depending on cable design

Max. height: 3 mm [0.118”]

Wire or cable length

Normal mode: 45 mm to 999,999 mm [1.77” to 3280 ft]
Short mode: < 45 mm [1.77”]

Conductor diameter

Stranded wire: Max. 6 mm2 (10 AWG)* / Solid wire: Max. 1.5 mm2 (16 AWG)*

Stripping Length

99 mm (3.89”)

Pull-off length

Right end: 45 mm [1.77”] (possibly longer, depending on type of cable)
Left end: 45 mm [1.77”]

Production throughput

5200 pieces / h (22 AWG cable; length: 100 mm[3.94”]; 4 mm [0.157] Double processing*

Feed rate

9 levels 147 – 1680 mm/s [5.78-66.1”/s]

Feed rollers

Standard: Steel rollers, knurled
Optional: Diamond or rubber coated rollers

Blade types

Standard: Carbide V-Blade
Optional HSS V-blade, Radius blade, cable-specific blade

Storage capacity

Up to 250 different programs

Interfaces

Standard: Interfaces for hot stampers, prefeeders and wire stackers
Optional: RS 232 robotic interfaces

Power supply

95 – 132 VAC / 190-264 VAC / 48 – 62 Hz / 160 VA

Dimensions (L × W × H)

410 x 370 x 275 mm [16.14” x 14.56” x 10.83”]

Weight

Net: 23 kg [50.5 lbs]; gross: 31 kg [68 lbs]

CE – Conformity

The EcoStrip 9300 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

Important Notice

*Some cables outside this application area can also be progressed using the EcoStrip 9300.
In extreme cases individual insulation materials of exceedingly tough adhesion cannot be
stripped off within this application area. Please send us your cable samples and specs for an
application evaluation.
