POF Finisher 20

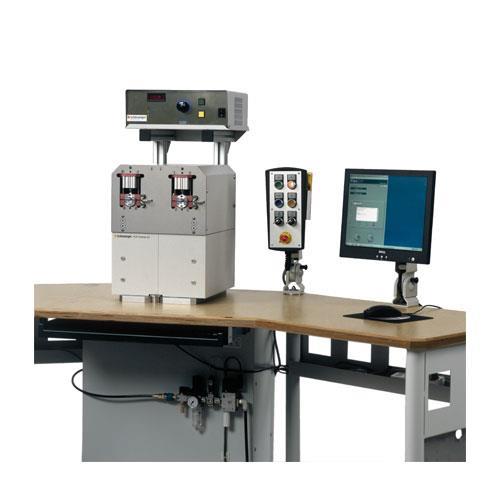

POF Surface Treatment Machine The POF Finisher 20 is used to prepare the end surfaces of POF fibers prior to connectorization. The end surfaces produced are smooth and square, eliminating the need for hot plating or other post termination processes.

Function

The POF Finisher 20 uses a diamond milling blade and material-specific, adjustable parameters to achieve optimal end-surfaces.

Special Features

  • Modular concept; can be integrated into a fully automatic machine
  • Industrial vacuum cleaner for removal of milling dust
  • Freely programmable process parameters
  • Remote diagnosis via modem
  • Service-friendly access to electronic and mechanical components
pof-fin20-01

Technical Specifications

Attribute Value
Cable Diameter 1.0 – 3.0 mm

Cable Length

50 mm (minimum) to infinite

Power Supply

3 x 400 VAC, 50 / 60 Hz

Compressed Air

6 bar, clean, dry and oil-free

Net Weight

Main machine: 48 kg
Spindle controller: 11 kg

Dimensions (L x W x H)

Main machine: 450 x 320 x 450 mm
Spindle controller: 260 x 360 x 130 mm

CE-Conformity

The POF Finisher 20 fully complies with all CE and EMV-Machine Guidelines (mechanical and electrical safety, electromagnetic compatibility).

Important Notice

We recommend that you send us your cable samples and application requirements
for review.
