PreFeeder 3500

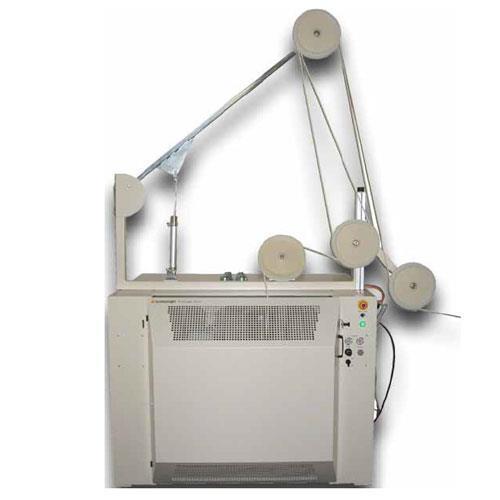

Prefeeding Machine Dereeler Type The PreFeeder 3500 is a compact cable feeding system for spool weights up to 300 kg. The system distinguishes itself through its simple assembly and handling of spools. All axes are electric driven. As of its special clamping and power system no shaft - axes and additional tappets are needed.
For high dynamic, the integrated cable accumulator is optimally adjusted with the dereeling drive. Surveillance functions provide greater security during setup and operation.
With this concept a cost efficient solution for a wide range of applications has been achieved.

Function

  • Pneumatically actuated cable spool receiver
  • Electric spool lift
  • Controlled drive of the dereeling axis with integrated break.
  • Surveillance functions and security circuits with accessible communication.

Customer Benefit

  • The PreFeeder 3500 is a powerful cable feeding system at an attractive price within its range
  • The simple operation concept with motorized axes allows spool handling by one person.
  • The high feeding dynamic allows a high operational capacity and helps to increase the economic efficiency of the processing line.
  • High reliability contributes to high operational availability as well as to assured production quality.
  • Compact design contributes to a small footprint.

Options

  • Cone sets conform with different dimensions of the cable spools
  • Set of pulleys for higher cable storage capacity up to 6 m
  • Retrofit kit for door opening on the right side

Applications

  • Cables on spools up to 300 kg and spool diameter of 920 mm

Technical Specifications

Attribute Value
Spool Diameter 400 - 920 mm
Spool Width
315 - 712 mm
Spool Arbor Diameter
38 to 125 mm
Spool Weight
300 kg
Cable Diameter
16 mm
Max. Dereeling Speed
5 m/sec maximum at full cable spool
Cable Accumulator Volume
3 m (optional 6 m)
Dimensions
(L x W x H)
1’880 x 1’330 x 2’795 mm
Power Supply
3 x 400 VAC + N / 16 A, compressed air 6 bar
CE – Conformity
The PreFeeder 3500 fully complies with all CE and EMV equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Important Note
Schleuniger recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine.
