PreFeeder 4700

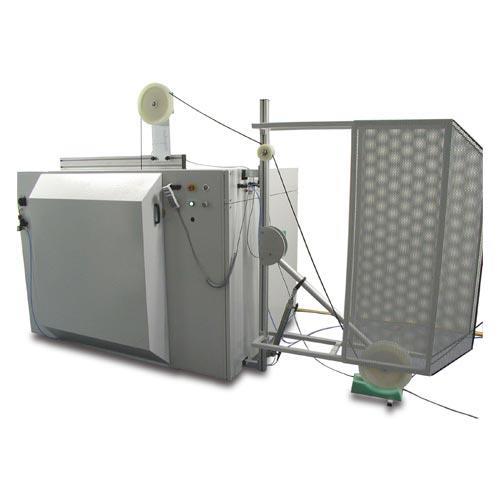

Prefeeding Machine Dereeler Type The PreFeeder 4700 is the ideal feeding system for high performance cable processing lines with spools weighing up to 1’000 kg. The system is characterized by a rugged construction and powerful drive. Various cable accumulating systems are available to achieve highly dynamic dereeling processes. An automatic interruptcircuit guarantees safety when reaching the cable end or in the case of a faulty coil on the spool.

For easy spool handling, all required axes are motorized. They can be easily controlled by a simple remote control. Thanks to the special spool clamping concept, no heavy spool shafts or clamps have to be used.

Function

  • Electrically actuated clamping system for the spool
  • Electrically driven spool lift
  • Continuous controlled drive of the dereeling axis with an electro-mechanical brake
  • Process control with safety-circuits integrated with both the prefeeder and the processing line

Customer Benefit

  • A powerful, highly reliable cable feeding system for spools up to 1’000 kg that improves the flexibility and quality of the whole production line
  • Fast spool changeovers thanks to the simple handling and motorized axis
  • Minimizes space requirements especially when using large, heavy spools
  • For easy handling of heavy spools, an optional air cushion device is also available. This device makes it possible for a single person to perform spool changeovers

Options

  • Various versions of pendulum arm control systems for inflexible cables up to 35 mm in diameter
  • Pneumatic linear accumulator system for flexible cables up to 18 mm in diameter and low bending resistance
  • Air cushion device for easy handling of heavy spools by only one person

Applications

Cables on spools up to 1’000 kg and spool diameter of 1’260 mm


Technical Specifications

Attribute Value
Spool Diameter 1’260 mm

Spool Width

850 mm

Spool Arbor Diameter

38 to 125 mm

Spool Weight

1’000 kg

Cable Diameter

18 mm in combination with linear accumulator
35 mm in combination with pendulum arm systems

Max. Dereeling Speed

140 1/min

Cable Accumulator Volume

Depending on the control / storage system and system lay out

System Dimensions
(L x W x H)

Dereeler 1'930 x 1'580 x 1'500 mm
Pendulum arm control system 1'300 x 300 x 1'660 mm
Linear storage system 980 x 340 x 2’400 mm

Power Supply

3 x 400 VAC + N / 32 AT, compressed air 6 bar

CE - Conformity

The PreFeeder 4700 fully complies with all CE and EMC equipment guidelines relative
to mechanical and electrical safety and electromagnetic compatibility.

Important Note

Schleuniger recommends that wire samples be submitted in cases where there is
doubt as to the processing capabilities of a particular machine.
