RotaryUnit 9600

Archive

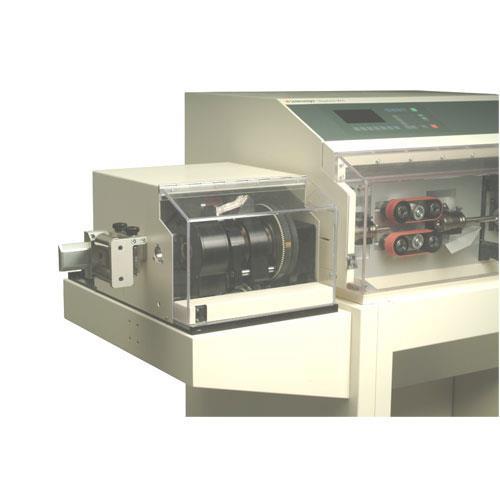

Rotary Cutting Unit for MegaStrip 9600 The RotaryUnit 9600 is an “add-on” system to the MegaStrip 9600. The step-less adjustable cable guide as well as the precisely positioned programmable blade system allow a precise radial cut on jackets and shields. Thanks to the simple programming on the panel of the MegaStrip 9600 or on the Cayman cable programming software from Schleuniger, multistep operations can easily be realized.

Function

Fully programmable movements of the 2 diametrical rotating blades:
- Rotary speed
- Feed rate of the blades while cutting
- Cutting depth of the blades
Step-less adjustable cable guide with 4 jaws for precise cable centering
Field proven concept of programming software from Schleuniger PowerStrip 9500

Benefits

The RotaryUnit 9600 and the MegaStrip 9600 combine to make the best solution for customers in cable manufacturing, who have a wide range of different cables or have to process shielded cables and who value flexibility and availability of equipment:

Unbeatable possibilities of operations and their combination to produce a cable in one production sequence
Maximum flexibility based on easily programmable cutting diameters. Universal programmability eliminates tooling changeover
Immediately react to new production requirements with no tooling purchase delay
Savings due to reduced blade requirement, such as cable specific radius blades

Options

Additional cable guide tubes depending on application

Applications

Multi step operations with additional steps such as longitudinal slitting of outer jacket
Cutting of shielded cables combined with inner conductor stripping for system cables

Technical Specifications

Attribute	Value
Cable Diameter	5 mm – 25.4 mm, max opening 27 mm
Max. Incision Depth per Step	» 6 mm insulation thickness (depending on jacket material)
Interfaces	CAN-bus to MegaStrip 9600
Programming	All settings are programmable on the panel of MegaStrip 9600 or on the cable programming software Cayman
Power Supply	100 / 240 VAC, 50 / 60 Hz
CE – Conformity	The RotaryUnit 9600 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Important Note	Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
