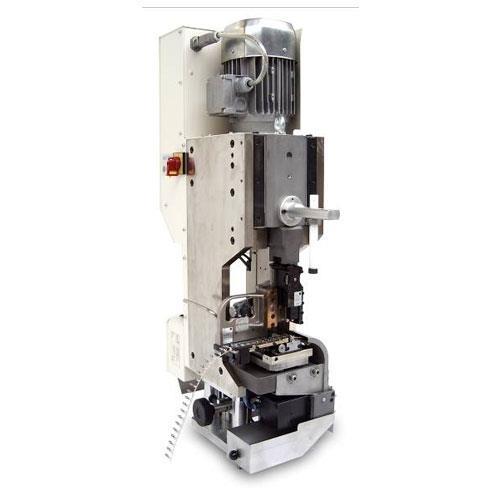

Crimping Station for CrimpCenter Series The SLP 2000 CP is a crimping station with electric crimp height adjustment for all models of the CrimpCenter series. It accepts most 40mm stroke mini-style crimp applicators with side- or rear-feed. Designed to facilitate high-speed crimping with both mechanical and pneumatic crimp applicators, the SLP 2000 CP is perfectly suited for fully automatic processing of wires up to 6 mm2.

The SLP 2000 CP offers all functionalities of the SLP 2000 C such as integrated crimp force monitoring. In addition it features electric crimp height adjustment. When using the optional crimp height measuring device (CHM), any variation between the nominal and measured crimp heights can be corrected electronically within a range of +/- 0.5 mm. The benefit is decreased set-up time and increased.

slp2000cp-01

Crimp height measuring -> EASY software-> Electric crimp height adjustment

Maximize Your Productivity

For short applicator change-over times, the SLP 2000 CP features a quick-change applicator clamping plate. To further minimize machine downtime of your Crimp- Center, the SLP 2000 CP can be optionally equipped with a Plug & CrimpTM adapter to allow complete change-over in less than 30 seconds with Schleuniger’s innovative ToolingShuttle 60. With the ToolingShuttle System (TSS), applicator, terminal reel
and paper winder can be prepared, while the CrimpCenter is producing – minimizing machine downtime significantly when frequently changing applications.

slp2000-c-01

Options

  • Height adjustable base frame (required for use on CrimpCenter models)
  • Plug & CrimpTM adapter for ToolingShuttle 60
  • Split Cycle functionality including centering device for closed barrel terminals
  • 30 mm press stroke
  • Various adapters for non-standard crimp applicators (incl. other shut heights)
  • Work light
  • Carrier strip cutter
  • Guide for rear-feed terminal carrier strip types
  • Accessory kit for pneumatic crimp applicators
  • SAW maintenance unit (pneumatic filter for smallest particles)


Technical Specifications

Attribute Value
Crimping Force 20 kN

Wire Cross Section

up to 6 mm2 (AWG 10)

Stroke

40 mm (optional 30 mm)

Shut Height

135.78 mm at 40 mm stroke (other shut heights optionally available)

Crimp Force Monitoring

Integrated

Crimp Height Adjustment

Electric, + 0.4 / - 0.5 mm adjustment range, 0.01 mm increments

Repeat Accuracy

< +/- 0.01 mm

Cycle Time

7 cycle speeds

Power Supply

1L / N / PE AC 230 or 1 L / N / PE AC 110; 50-60 Hz; 0.75 kW

Dimensions (W x H x L)

260 x 780 x 380 mm (without base frame)

Weight

approx. 110 kg (without base frame)

CE-Conformity

The SLP 2000 CP fully complies with all CE and EMC equipment guidelines relative
to mechanical and electrical safety and electromagnetic compatibility.

Important Note

Schleuniger recommends that wire samples be submitted in case where there is
doubt as to the processing capabilities of a particular machine.
