PullTester 26T

Motorized testing device for destructive, non-destructive and cyclic pull force tests up to 1000N (220 lbf.).

Overview

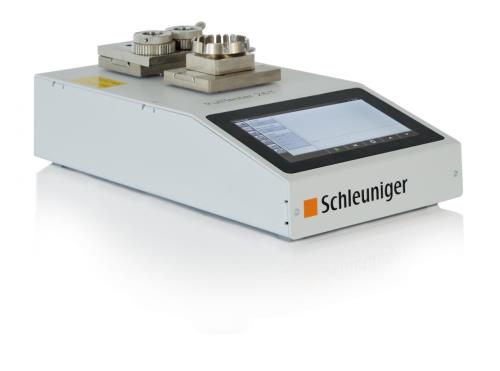

The PullTester 26T is a motor-driven benchtop device designed to ensure the critical pull-force values of crimped, welded, plugged and other connections for quality control and assurance. The measuring range of the PullTester 26T is divided into two separately calibratable levels, measures pull-off forces up to 200 and 1000 N with uniform and constant pulling speed and thus ensures extremely reliable measuring results. The standard 12-position contacting allows the testing of most applications in these measuring ranges. Other holding fixtures are available on request according to specification.

Thanks to the PullTester 26T, companies can keep their quality standards constant and guarantee their customers the safety of crimped products. The device is easy to install and use: The 7-inch color touchscreen, which displays the pull-off curve in real time during the entire work process, allows data and measurement tasks for different crimp connections to be entered easily and comfortably. Pull-off values, pull-off curves, statistics, jobs and measurements can be stored in the internal memory.

Real-time force diagram
Adjustable pulling speeds
Extended pulling modes for destructive, nondestructive and cyclic tests
User-friendly 7-inch color touchscreen
New user interface for simple handling
Storage of forces, curves, statistics and measured values

Application Range

The measuring range of the PullTester 26T is divided into two separately calibratable levels, measures pull-off forces up to 200 and 1000 N with uniform and constant pulling speed and thus ensures extremely reliable measuring results. The standard 12-position contacting allows the testing of most applications in these measuring ranges. Other holding fixtures are available on request according to specification.

More Information

Modern and simple handling

Quick, simple mode for single pull tests
Library mode for the creation and loading of various test settings
Loading of work processes with barcode scanner
User guidance for easy operation

Real-time force diagram

Enables early detection of faulty tests, allowing operating time savings
Interfaces for data and setup exchange
RS 232 interface for connection to label printer
Ethernet and USB

7-inch color touchscreen

Extended pulling modes for destructive, nondestructive and cyclic tests
Simple setting of functions via control box
Internal memory for storing forces, curves, statistics and measured values
Various operator levels for production, setup and maintenance

Technical Specifications


Measuring Range	Level 1: 200 N Level 2: 1.000 N
Unit of Measure	Newton (N), kiloponds (Kp), pound force (lbf.)
Measuring Precision	Level 1: ± 0.015 N Level 2: ± 0.030 N
Measuring Tolerance	Level 1: ± 0.5% of measuring range end Level 2: ± 0.5% of measuring range end
Operating Temperature	0 – 50°C
Stroke	43 mm (1.69”)
Pulling Speed	4 speeds: 25, 50, 100 and 200 mm/min. (0.98, 1.97, 3.94 and 7.87“/min.)
Power Supply	24 VDC
Memory Capacity	8 GB (µSD)
Interfaces	Data transmission: Ethernet (10/100BaseT), RS232- and USB interface Printing options: RS232 direct interface to printer
Weight	Ca. 8 kg (18 lbs)
Dimensions (L x W x H)	405 x 205 x 130 mm (15.9 x 8 x 5”)
User Interface	7-inch color touchscreen
Pulling Modes	Nondestructive tests: Pull + Hold: Pull to a specified force and hold for a desired period of time Pull + Return: Pull to a specified force and return to start position Cyclic tests: Repeat the „Pull + Back“ process. The number of repetitions is fully configurable Destructive tests: Pull + Break: Normal pull test until wire breaks Pull + Hold + Break: Pull to a specified force, hold for a desired period of time and pull until wire breaks
CE-Conformity	The PullTester 26T fully complies with all CE and EMC equipment guidelines relative to mechani-cal and electrical safety and electromagnetic compatibility.
