WireCam
CrimpCenter option to monitor strip quality and seal application.
Overview

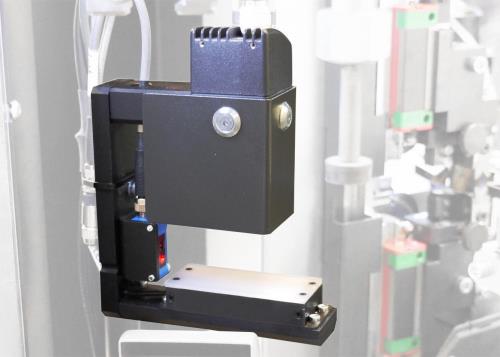

WireCam is a highly innovative quality assurance option for Schleuniger CrimpCenters. The system monitors the stripping results and certain properties of positioned seals. A camera takes a picture of the processed wire end while the wire is in motion, or "on-the-fly." Based on a two-dimensional top view picture, the software inspects each single wire end and compares it with the reference in real time.
- Full integration with EASY Software for simple integration
- Simple and fast set-up
- Measuring results are displayed in real time
More Information
Options
WireCam can be retrofitted on the CrimpCenter 36 S and the CrimpCenter 6x series (for machines manufactured beginning in 2013).
Technical Specifications
| |
View | 26 x 20 mm (1.02 x 0.79“) |
Conductor Cross-Section | 0.13 – 6 mm² (26 – 10 AWG) |
Application Limits | Full strip maximum 24 mm (0.94“) |
Seal Length | Maximum 10 mm (0.39“) |
Seal Diameter | Maximum 13 mm (0.51“) |
