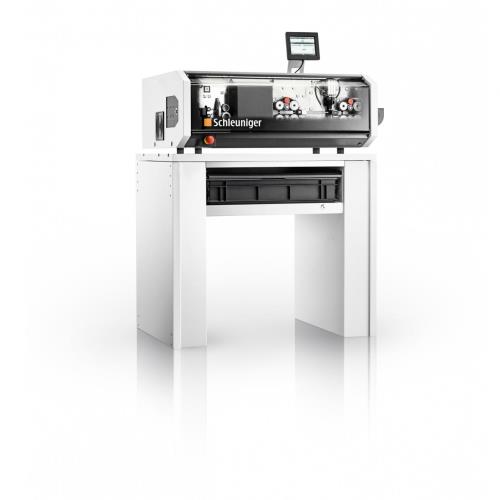

MultiStrip 9480
The most versatile cut & strip platform. Available in six versions.
Overview
The MultiStrip 9480 family offers six machine versions to cover a wide range of applications and budgets. With many additional options and accessories the MultiStrip 9480 is the most versatile cut & strip platform on the market.
The fully programmable rotary incision unit (on MR, RS, RSX and RX versions) allows easy processing of high precision coaxial and multi-layer applications. Additional features, such as our multi-position cutter head, create a nearly endless range of application possibilities. Each machine can be easily interfaced with Schleuniger’s vast line of integrated accessories to create a fully automatic wire processing production line.
Expand your capabilities
With features like our multi-position cutter head, application possibilities are nearly endless.
Maximize your productivity
Minimize your changeover time and maximize your production. Save time with fast and easy setups.
Simplify your programming
Each of the six machine versions featurea powerful control software. The unique programming concept will impress both experts and beginners.
Precision is our passion
Don‘t waste time and money on inaccurate wire processing. Be precise. At Schleuniger precision is our passion.
Application range
Material
- Buffered Fiber
- Coated Fiber
- Coaxial Cable
- Cord
- Discrete Wire
- Duplex Glass Optical Fiber
- Fiber Optic Cable, Foils, and More
- Fiber Ribbon
- Fiberglass
- Flat Material
- Flat Ribbon Cable
- GOF (Glass Optical Cable)
- Jacketed Flat Cable
- Kevlar
- Kevlarfasern
- Multi-conductor Cable
- POF (polymer optical cable)
- PUR
- PVC
- Rubber
- Rubber Cords / Profiles
- Shielded Cables
- Single Conductor Cable
- Single Wire
- Solid Wire
- Stranded Wire
- Teflon®
- Triaxial Cable
- Tubes + Pipes
- Tubing
- Wire
- Wire with Special Isolation
Processing Capabilities
- Cut to length
- Full or partial strip left and right
- Jacket and inner conductor stripping
- Jacket stripping of extremely thin insulations
- Jacket stripping of multi-conductor cables
- Multi-layer stripping
- Multi-layer with shield processing (Coax, Hybrid, etc.)
- Multi-step jacket stripping with inner conductor stripping and window slitting
- Multi-step stripping
- Trimming, separating and stripping of individual zipcord conductors
- Wire marking
Technical Specifications
| |
Raw Material Diameter | S/M/MR/RS Max. 12.5 mm (0.49“)
RSX/RX Max. 6.5 mm (0.26“) |
Conductor Cross-Section | S/M/MR/RS Max. 20 mm² (4 AWG)
RSX/RX Max. 6 mm² (10 AWG) |
Workpiece Length | S/M/MR/RS: 59 - 1,000,000 mm (2.3” - 39,370”)
RSX/RX: 21.5 - 1,000,000 mm (0.85“ - 39,370”) |
Workpiece Length (without short mode) | S/M/MR/RS: 8 - 59 mm (2.3”)
RSX/RX: 8 - 21.5 mm (0.85“) |
Strip Length | 0.1 – 1,000,000 mm (0.004 – 39,370”) |
Pull-Off Length | Left Side:
S/M/MR: 95 mm (3.74”)
RS/RSX: 95 mm (3.74”)
RX: 17.3 mm (0.68”) Right Side:
S/M/MR: 195 mm (7.68”)
RS/RSX: 135 mm (5.33”)
RX: 40.3 mm (1.58”) |
Interfaces | Standard: 2 x USB, 2 x Ethernet, prefeed, hotstamp and postfeed interfaces
Optional: 5 additional SMI’s (Schleuniger Machine Interface) for up to 2 marking systems, different peripheral devices, and emergency stop circuits. |
Power Supply | 100-240 VAC, 50/60 Hz Air supply |
Compressed Air Connection | S/M/MR: max 7 bar (105 psi) optional
RS/RSX/RX: max 7 bar (105 psi) air jet |
Dimensions (L x W x H) | S/M: 734 x 698 x 333 mm (28.9 x 27.5 x 13.1”)
MR/RS/RSX: 934 x 698 x 333 mm (36.8 x 27.5 x 13.1”)
RX: 734 x 698 x 333 mm (28.9 x 27.5 x 13.1”) |
Weight | S: 80 kg (176 lbs.)
M: 86 kg (189 lbs.)
MR: 89 kg (196 lbs.)
RS/RSX: 95 kg (209 lbs.)
RX: 72 kg (158 Ibs.) |
