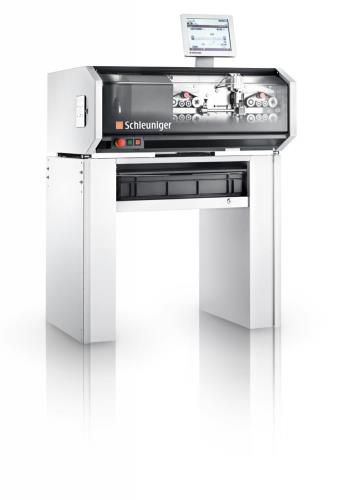

Modular high-end automatic cut & strip machine.
Overview
The PowerStrip 9580 combines the utmost in precision and performance which cover an unbeatable range of application possibilities. Thanks to the modular design, the machine can be adapted to the customer's requirements and processing modules retrofitted at any time, making the investment a wise choice for today and tomorrow’s wire processing needs.
- Modular, open system architecture offers supreme flexibility
- Surpassing wide range of applications
- Proven easy programming with intuitive navigation on 10" color touchscreen
- High production rates
- Wide range of interfaces for different peripherals
Application range
The PowerStrip 9580 is the heart of your automatic processing line and specifically designed to provide the highest possible productivity. Powerful servo drives ensure fast feeding speeds and high stripping forces. An intelligent control unit guarantees short cycle times and repeatable high-quality performance. Discrete wires with cross sections up to 70 mm² (2/0 AWG), shielded cable and complex multi-conductor applications can be processed in one automated operation. Processing modules, such as the programmable cutter head system, rotary incision unit and moveable right exit guide allow you to configure your PowerStrip 9550 according to your application requirements now or in the future.
Processing Modules
The PowerStrip 9580 is available in 4 basic configurations, combining processing with functional modules to cover a wide range of wire processing applications. All basic models can be retrofitted with other PowerSystem functional modules and options. The modules integrated in the basic models can also be retrofitted or replaced in the future if your application requirements change.
Material
- Buffered Fiber
- Coated Fiber
- Coaxial Cable
- Cord
- Discrete Wire
- Duplex Glass Optical Fiber
- Fiber Optic Cable, Foils, and More
- Fiber Ribbon
- Fiberglass
- Flat Cable
- Flat Material
- Flat Ribbon Cable
- GOF (Glass Optical Cable)
- Jacketed Flat Cable
- Kevlar
- Kevlarfasern
- Multi-conductor Cable
- POF (polymer optical cable)
- PUR
- PVC
- Rubber
- Rubber Cords / Profiles
- Shielded Cables
- Single Conductor Cable
- Single Wire
- Solid Wire
- Stranded Wire
- Teflon®
- Triaxial Cable
- Tubes + Pipes
- Tubing
- Wire
- Wire with Special Isolation
Processing Capabilities
- Cut to length
- Full or partial strip left and right
- Jacket and inner conductor stripping
- Jacket stripping of extremely thin insulations
- Jacket stripping of multi-conductor cables
- Multi-layer stripping
- Multi-layer with shield processing (Coax, Hybrid, etc.)
- Multi-step jacket stripping with inner conductor stripping and window slitting
- Multi-step stripping
- Trimming, separating and stripping of individual zipcord conductors
- Wire marking
More Info
Options
Different options add processing capabilities to your PowerStrip 9580 or make working with the machine even easier. Examples are the universal slitting unit, different blade types, or the modular rack system for comfortable operation. The intelligent design with PowerSystem and SmartBlade guarantees maximum flexibility today and in the future.
Programmable Processing Parameters
- PowerStrip 9580 S M SR MR cutting and stripping with partial or full pull-off, left and right
- Multistage stripping
- Multistep stripping lim.
- Jacket stripping of multi-conductor cables
- Stripping of very thin insulation
- Jacket stripping of multi-conductor cables and power cords with stripping of inner conductors
- Shortening, separating and stripping
- Multistep stripping with axial window slitting
- Multistep stripping of shielded cables
- without processing the shield
- with processing the shield lim.
Models
- PowerStrip 9580 S (single-blade cutter head)
- PowerStrip 9580 M (flexible multi-blade cutter head)
- PowerStrip 9580 SR (S + additional rotary incision)
- PowerStrip 9580 MR (M + additional rotary incision)
Technical Specifications
| |
Raw Material Diameter | 16 mm (0.63") |
Conductor Cross-Section | Maximum 70 mm² (2/0 AWG) |
Workpiece Length | Standard mode: 70 – 999,999 mm (> 2.8")
Short mode: < 70 mm (2.8") |
Strip Length | 999,999 mm (39,370") |
Pull-Off Length | Left side: Max. 115 mm (4.5")
Right side: Max. 240 mm (9.5") |
Feeding Speed | 4 m/s (13 ft/s) |
Blade Cartridge | SmartBlade for blades with 20 mm and 16 mm grid (compatible with PowerStrip 9500, OmniStrip 9450 and EcoStrip 9320) |
Blade Type | 20 mm grid: V-blades, radius and die blades, multi-radius blades, universal slitting unit, special blades
16 mm grid: V-blades, radius and die blades, multi-radius blades, special blades > only compatible with SmartBlade |
Interfaces | Ethernet, USB, RS232, pre-/post-processing interface, hotstamp, inkjet, foot pedal, NV1xxx |
Power Supply | Standard: 115 VAC 50/60 Hz
Optional: 208-230 VAC 50/60 Hz |
Compressed Air Connection | 6 bar (90 psi) (required only when using optional air ejection kit for recoil break) |
Dimensions (L x W x H) | 910 x 780 x 400 mm (36 x 31 x 16") Without standalone touchscreen |
Weight | S: 131 kg (288 Ibs.)
M: 138 kg (304 lbs.)
SR: 147 kg (324 Ibs.)
MR: 154 kg (340 Ibs.) |
CE-Conformity | The PowerStrip 9580 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
