JacketStrip 8400
Powerful, automatic pull-off of tough insulations. Full strips, partial and window strip up to 200 mm.
Overview

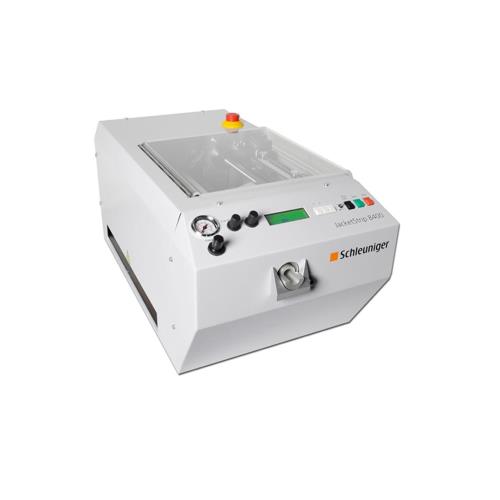

The JacketStrip 8400 automatically strips jackets or insulation from thin round cables to difficult to hard-to-process power cables with an outer diameter (O.D.) up to 26 mm (1''). This versatile machine performs full strips, partial strips and window strips up to 200 mm (7.87'') stripping length.
- Handles thick cables and tough insulation materials
- Partial and window strip capability
- Rotary incision head with 4-blade technology. No blade changes required
- High flexibility
- Quick return on investment
Application Range
The JacketStrip 8400 jacket stripping machine can strip the jackets of round wires and cables up to 26 mm (1.02") in diameter with a stripping length up to 200 mm (7.87"). The solid, powerful machine processes thick, tough, soft and thin insulation materials. Simple operation, short cycle times and a universal blade design guarantee a good return on investment. The rotating 4-blade system centers the cable and creates precise incisions into the cable jacket. After the cable jacket has been cut, it is removed using a strong electric motor (full/partial or window strip can be selected). Pneumatically operated clamping jaws guarantee optimal cable retention during the stripping process. Waste insulation material is automatically ejected.
Material
- Cable
- Discrete Wire
- Kapton
- Multi-conductor Cable
- PUR
- PVC
- Rubber
- Single Conductor Cable
- Solid Wire
- Stranded Wire
- Teflon®
- Tefzel®
- Wire
Processing Capabilities
- Full strip
- Multi-conductor cable processing (jacket only)
- Partial strip
- Power cable processing
- Window stripping
More information
Adjustable Processing Parameters
- Pull-off speed
- Stripping lengths partial strip
- Stripping lengths full strip
- Rotational speed of the stripping head
- Stripping diameter
- Stripping position
- Feed rate of the stripping blades
- Cable clamping force
Features
- 4-blade system
- Rotary cut
- No blade changes required
- High repeatability
- Versatility
- Window stripping capability
- LCD display for machine diagnostics
Technical Specifications
| |
Raw Material Diameter | Maximum 26 mm (1.0”) |
Diameter Precision | 0.1 mm – 0.25 mm (0.004 – 0.01”)
Dependent on Ø |
CE-Conformity | The JacketStrip 8400 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
Strip Length | Adjustable from 7 – 200 mm (0.27 – 7.87”)
Optional 200 – 400 mm (7.87 – 15.74”) |
Pull-Off Length | Adjustable from 20 – 190 mm (0.78” – 7.5”) |
Cycle Time | At least 2.2 s (depending on incision time and stripping) |
Raw Material Type | PVC, PUR, rubber, Teflon, Tefzel, Kapton, etc. |
Interfaces | Foot pedal |
Compressed Air Connection | 6 bar (90 psi) |
Power Supply | 100/115 VAC, 230/240 VAC, 300 VA, 50/60 Hz |
Noise Level | <70 dB (A) |
Dimensions (L x W x H) | 690 x 370 x 330 mm (27.2” x 14.6” x 13.0”) |
Weight | Net: 48 kg (106 Ibs.)
Gross: 56 kg (124 Ibs.) |
Blade | 4 universal blades |
