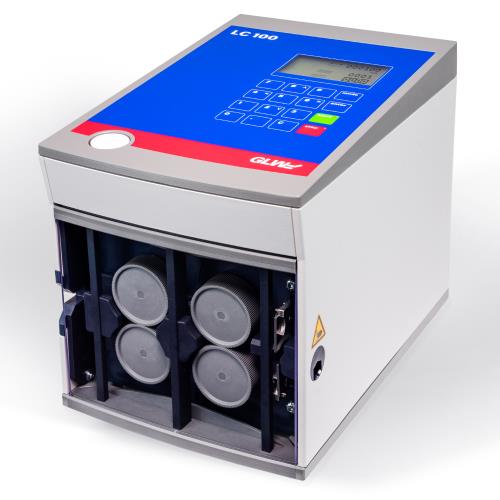

GLW LC 100
The LC 100 electric cross cutting machine cuts strands and cables precisely and quickly.
After inserting the cable, the measuring and transport rollers automatically adjust to the required diameter when the front flap is closed. Simply enter the desired length and quantity – the LC 100 does the rest. Using the supplied software, series orders can be easily pre-programmed on the PC. Repeat jobs can be saved as projects on the LC 100.
- Electric cutting machine for flexible, solid wires and heat shrink tubes
- Easy to use
- Time savings due to fast material change
- Automatic detection of the cable cross section
- Enhanced measurement accuracy due to independent measuring system
- Programmable for serial production
- Perfect for mobile use
Technical Specifications
| |
Cross section: | 0.08 - 10 mm² / 28 – 8 AWG |
Max. cable outer diameter: | 8 mm (0.32") |
Cutting length: | 2 mm - 1000 m |
Feeding speed: | 0.04 - 0.5 m / sec |
Power supply: | 100 – 240 VAC |
Dimensions (L x W x H): | 301 x 194 x 228 mm (11.9 x 7.7 x 9.0") |
Weight: | 10 kg / 22 lbs |
Part no.: | 006194 |
